Removable Copper Double Coil Boiler
300 L – 5,000 L300 L – 5,000 L. Removable upper + lower copper coils; two heat sources and easy maintenance.
- Max. Coil Temperature
- Maks. 110 °C
- Max. Hot Water
- Maks. 90 °C
- Test Pressure
- 13 Bar
- Working Pressure
- 10 Bar
- 25+ years experience
- 7,000 m² production
- TSE & ISO certified
Certifications & ComplianceCEISO 9001:2015ISO 14001:2015ISO 45001:2018TSE
01
Overview

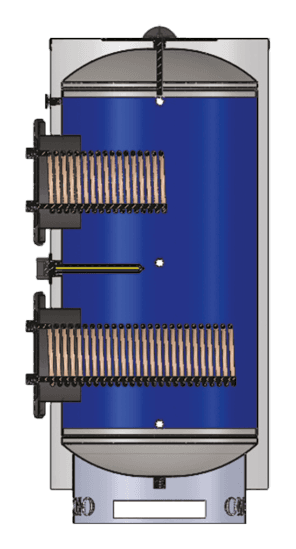

Double-coil boiler with both upper and lower copper coils removable. Operates with two separate heat sources such as solar + boiler or heat pump + boiler.
02
Key Features
- Removable upper + lower copper coils
- Operates with two heat sources
- Practical, economical, modern design
- High-quality, certified materials
- Enamel inner coating
- Cathodic protection (anode rod)
- Thermometer included
- Long-lasting and durable
03
Operating Values
Max. Coil Temperature
Maks. 110 °C
Max. Hot Water
Maks. 90 °C
Test Pressure
13 Bar
Working Pressure
10 Bar
Inner Coating
Enamel
04
Specifications Table
| Volume (L) | 300L | 500L | 800L | 1000L | 1500L | 2000L | 2500L | 3000L | 4000L | 5000L |
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter A (mm) | 650 | 750 | 850 | 950 | 1200 | 1200 | 1380 | 1380 | 1450 | 1650 |
| Height H (mm) | 1650 | 1650 | 1700 | 2100 | 2000 | 2300 | 2300 | 2400 | 2850 | 2850 |
| Upper Copper Coil (m²) | 0,5 | 0,7 | 1,8 | 2,1 | 2,8 | 2,8 | 3,2 | 3,2 | 3,6 | 4,5 |
| Lower Copper Coil (m²) | 0,9 | 1,2 | 3,3 | 3,9 | 5 | 5 | 5,8 | 5,8 | 6,5 | 8 |
| Dry Weight (kg) | 130 | 180 | 240 | 265 | 415 | 565 | 635 | 740 | 845 | 975 |
300 L
- Diameter A (mm)
- 650
- Height H (mm)
- 1650
- Upper Copper Coil (m²)
- 0,5
- Lower Copper Coil (m²)
- 0,9
- Dry Weight (kg)
- 130
500 L
- Diameter A (mm)
- 750
- Height H (mm)
- 1650
- Upper Copper Coil (m²)
- 0,7
- Lower Copper Coil (m²)
- 1,2
- Dry Weight (kg)
- 180
800 L
- Diameter A (mm)
- 850
- Height H (mm)
- 1700
- Upper Copper Coil (m²)
- 1,8
- Lower Copper Coil (m²)
- 3,3
- Dry Weight (kg)
- 240
1000 L
- Diameter A (mm)
- 950
- Height H (mm)
- 2100
- Upper Copper Coil (m²)
- 2,1
- Lower Copper Coil (m²)
- 3,9
- Dry Weight (kg)
- 265
1500 L
- Diameter A (mm)
- 1200
- Height H (mm)
- 2000
- Upper Copper Coil (m²)
- 2,8
- Lower Copper Coil (m²)
- 5
- Dry Weight (kg)
- 415
2000 L
- Diameter A (mm)
- 1200
- Height H (mm)
- 2300
- Upper Copper Coil (m²)
- 2,8
- Lower Copper Coil (m²)
- 5
- Dry Weight (kg)
- 565
2500 L
- Diameter A (mm)
- 1380
- Height H (mm)
- 2300
- Upper Copper Coil (m²)
- 3,2
- Lower Copper Coil (m²)
- 5,8
- Dry Weight (kg)
- 635
3000 L
- Diameter A (mm)
- 1380
- Height H (mm)
- 2400
- Upper Copper Coil (m²)
- 3,2
- Lower Copper Coil (m²)
- 5,8
- Dry Weight (kg)
- 740
4000 L
- Diameter A (mm)
- 1450
- Height H (mm)
- 2850
- Upper Copper Coil (m²)
- 3,6
- Lower Copper Coil (m²)
- 6,5
- Dry Weight (kg)
- 845
5000 L
- Diameter A (mm)
- 1650
- Height H (mm)
- 2850
- Upper Copper Coil (m²)
- 4,5
- Lower Copper Coil (m²)
- 8
- Dry Weight (kg)
- 975
05
Technical Drawing
Refer to the catalog technical table for connection and dimension codes.
