Boiler
Electric Boiler
200 L – 2,000 L200 L – 2,000 L. Industrial capacity with electrical panels from 5 kW up to 45 kW.
- Max. Hot Water
- Maks. 90 °C
- Test Pressure
- 13 Bar
- Working Pressure
- 10 Bar
- 25+ years experience
- 7,000 m² production
- TSE & ISO certified
Certifications & ComplianceCEISO 9001:2015ISO 14001:2015ISO 45001:2018TSE
01
Overview
Electric boilers from 200 L to 2,000 L for industrial and commercial use. Electrical panels from 5 kW up to 45 kW deliver uninterrupted hot water for high demand.
02
Key Features
- 5 kW – 45 kW electrical panel options
- Practical, economical, modern design
- High-quality, certified materials
- Enamel inner coating
- Cathodic protection (anode rod)
- Thermometer included
- Long-lasting and durable
03
Operating Values
Max. Hot Water
Maks. 90 °C
Test Pressure
13 Bar
Working Pressure
10 Bar
Inner Coating
Enamel
04
Specifications Table
| Volume (L) | 200L | 300L | 500L | 800L | 1000L | 1500L | 2000L |
|---|---|---|---|---|---|---|---|
| Diameter A (mm) | 550 | 650 | 750 | 850 | 950 | 1200 | 1200 |
| Height H (mm) | 1380 | 1650 | 1650 | 1700 | 2100 | 2000 | 2300 |
| Electrical Panel (kW) | 5 | 10 | 15 | 20 | 30 | 30 | 45 |
| Dry Weight (kg) | 65 | 97 | 145 | 200 | 215 | 365 | 515 |
200 L
- Diameter A (mm)
- 550
- Height H (mm)
- 1380
- Electrical Panel (kW)
- 5
- Dry Weight (kg)
- 65
300 L
- Diameter A (mm)
- 650
- Height H (mm)
- 1650
- Electrical Panel (kW)
- 10
- Dry Weight (kg)
- 97
500 L
- Diameter A (mm)
- 750
- Height H (mm)
- 1650
- Electrical Panel (kW)
- 15
- Dry Weight (kg)
- 145
800 L
- Diameter A (mm)
- 850
- Height H (mm)
- 1700
- Electrical Panel (kW)
- 20
- Dry Weight (kg)
- 200
1000 L
- Diameter A (mm)
- 950
- Height H (mm)
- 2100
- Electrical Panel (kW)
- 30
- Dry Weight (kg)
- 215
1500 L
- Diameter A (mm)
- 1200
- Height H (mm)
- 2000
- Electrical Panel (kW)
- 30
- Dry Weight (kg)
- 365
2000 L
- Diameter A (mm)
- 1200
- Height H (mm)
- 2300
- Electrical Panel (kW)
- 45
- Dry Weight (kg)
- 515
05

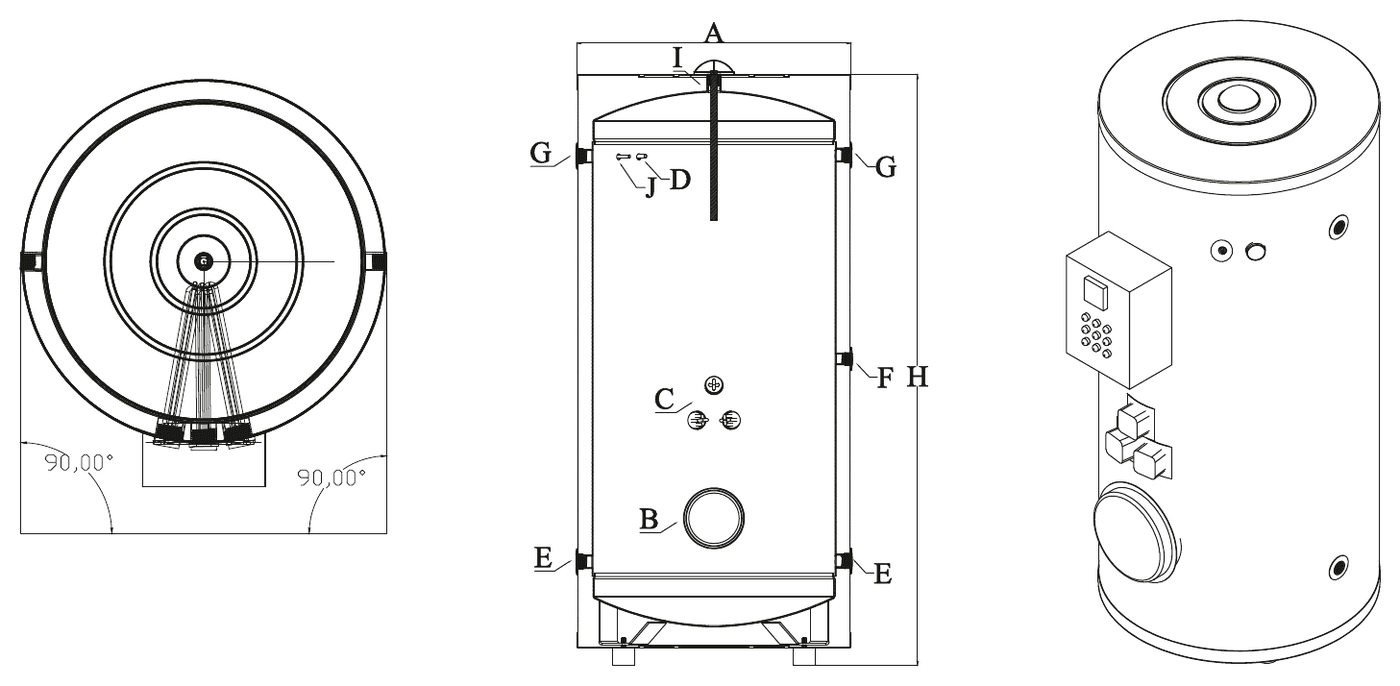

Technical Drawing
Refer to the catalog technical table for connection and dimension codes.
